towards finalizing the entwurf

we are still planing to have the following elements:

  • grid of CNC-mirrors on stilts related to the architectural 3×3m floor grid
  • cobra ( moving-head ) lights shining into the grid
  • visitors bring mobile phone that flash randomly or choreographed

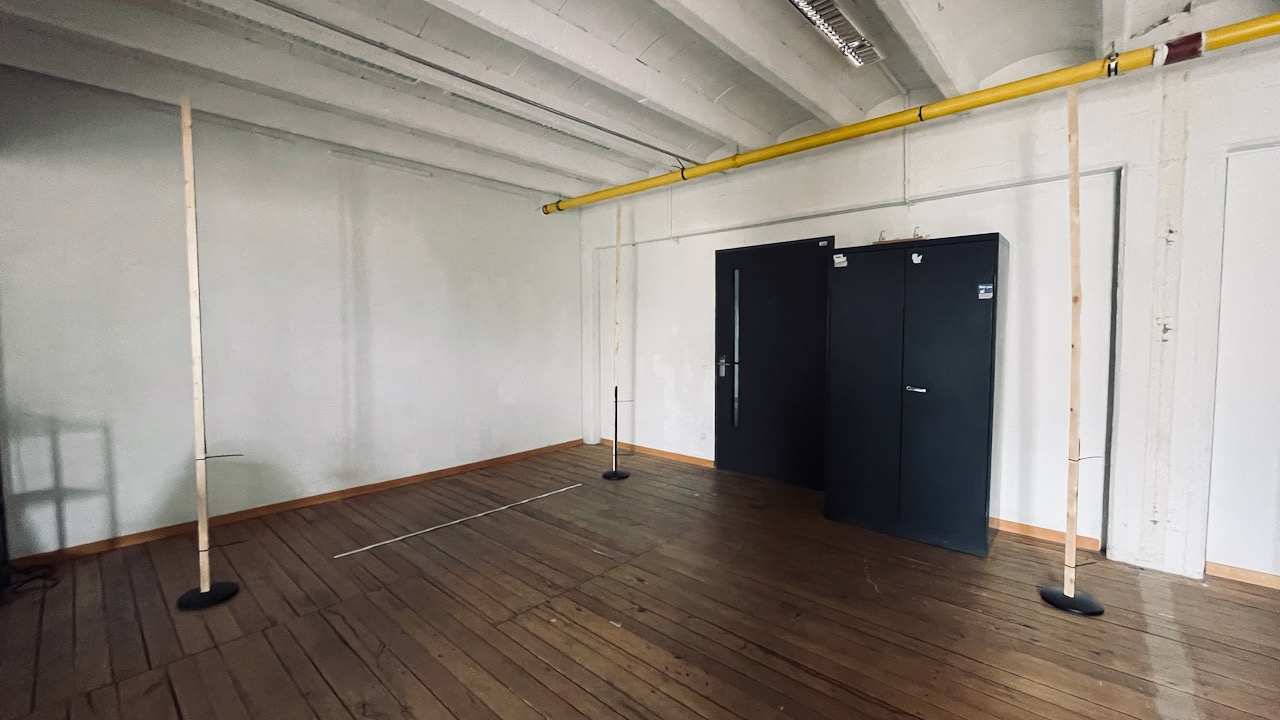

we set up a test model of 3 poles with a height of 2.5m and a pitch of 3m to get an idea of the dimensions of the grid:

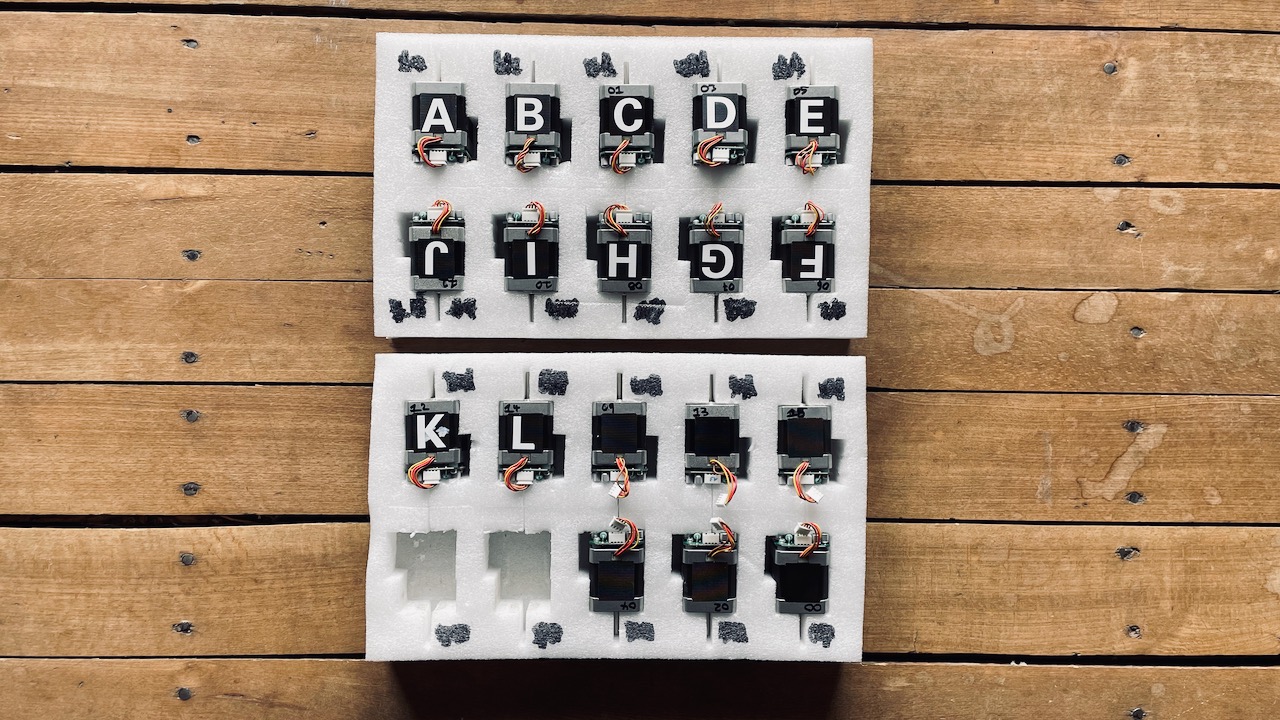

i have recovered a set of stepper motors: Nanotec SMCI12 PD2-N4118L1804-2. 12 motors are working ( 6 have broken controllers and but functioning motors ). thes motors are real nice and real expensive. they can be controlled via a RS485 serial interface which allows a signal cable length of 350 m which is perfect for our needs:

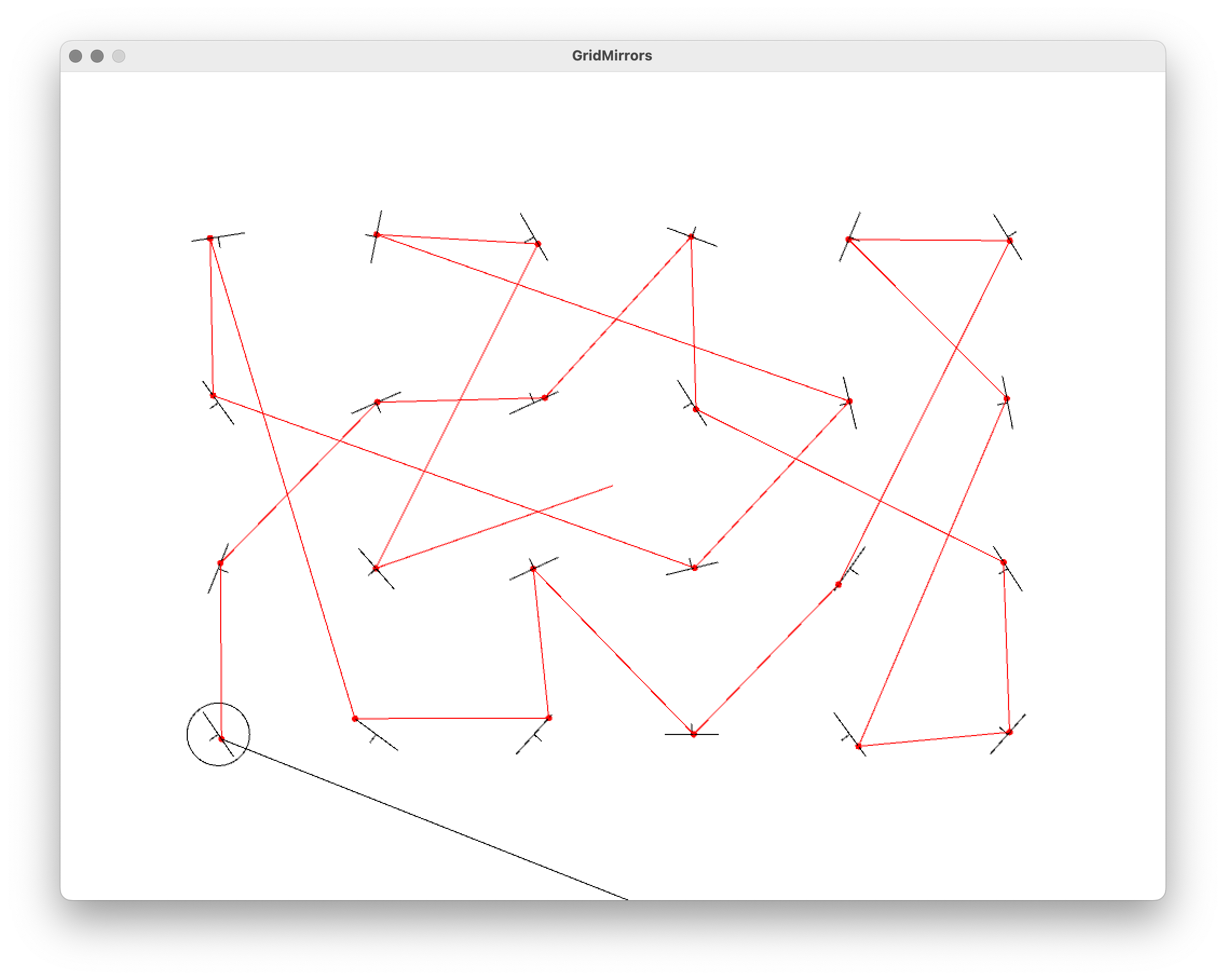

i have also created a simple tool that allows to position ( 3D ) mirror objects in space an cast rays through it. this could be a very nice tool to experiment with procedural configurations:

-- dennisppaul
